Basis + site
Code and zoning matrix, permit requirements, setbacks, access, drainage, and utility routing.
Project at a glance
480 sf above a garage,
now coordinated across 11 sheets.
The current plan has advanced from layout study to a schematic construction and engineering basis. Watch the walkthrough, then review the exterior, site, and floor-plan sources.
Video walkthrough
Current plan overview
Short Loom walkthrough of the ADU plan and coordination set.
01 · Exterior

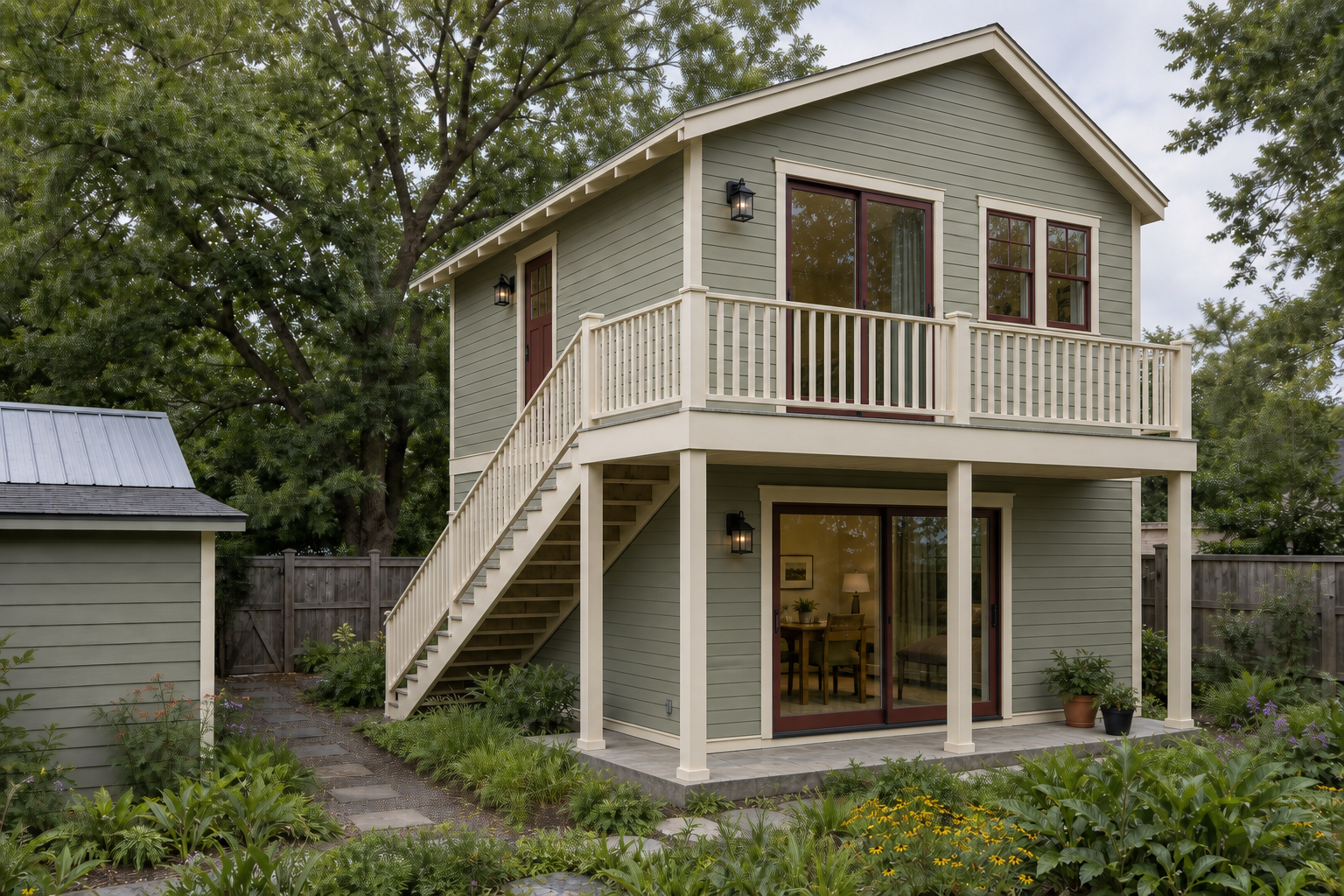

Yard view
Stacked east patios, large sliders, warm siding, and the ADU seen from the existing yard.
02 · Exterior

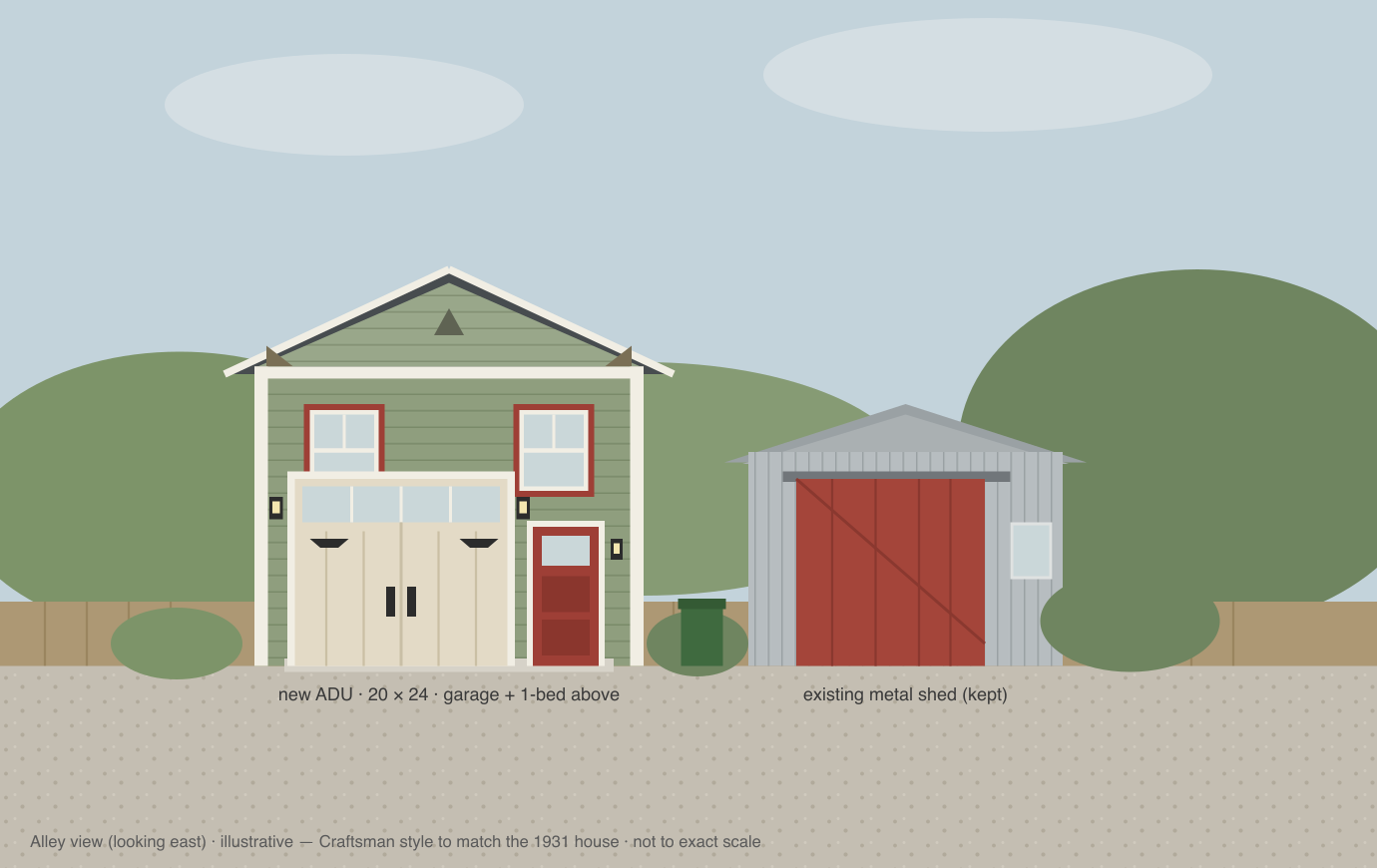

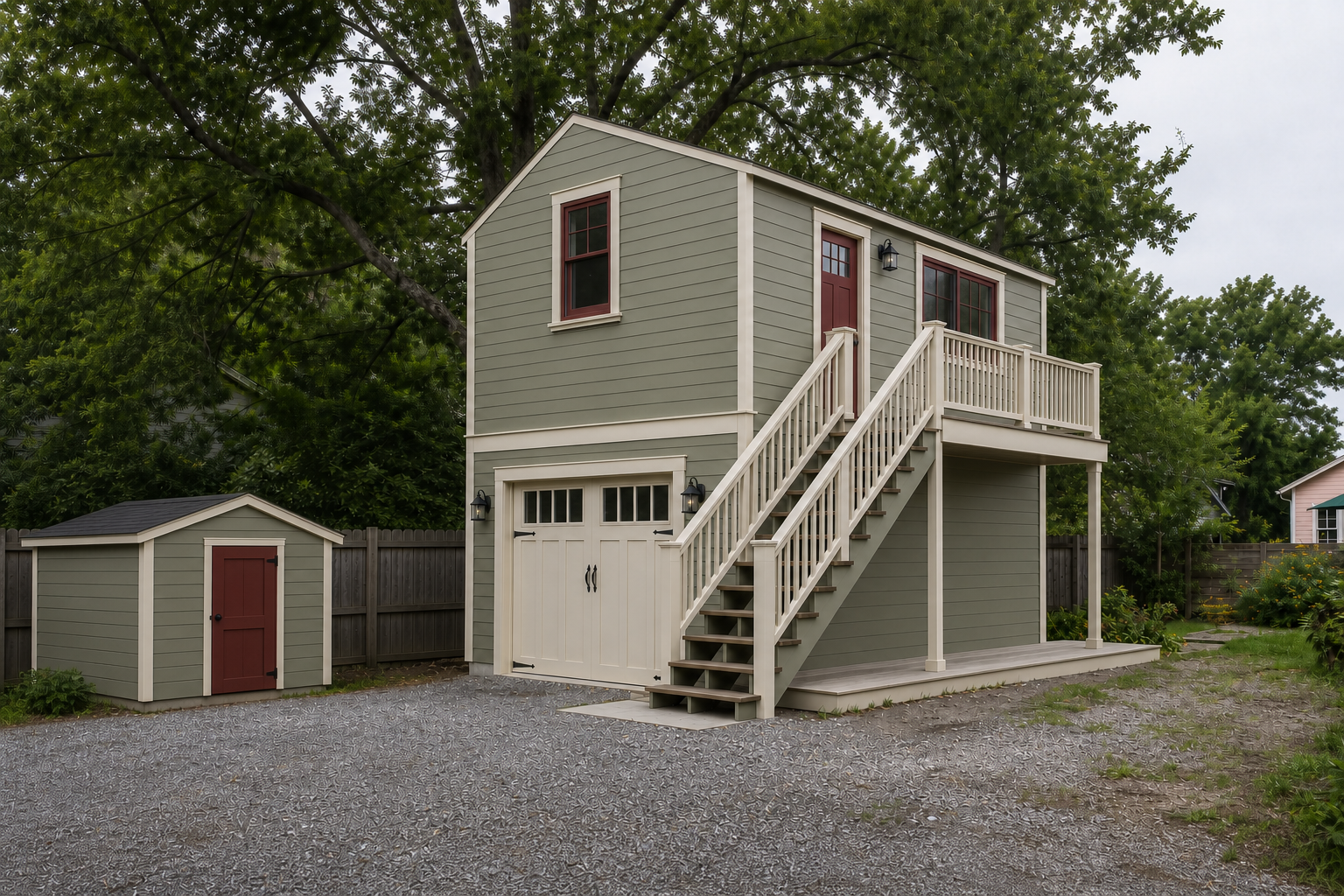

Alley view
Single-run south stair, flat upper landing, conventional apartment entry, and the terrace wrapping toward the yard.

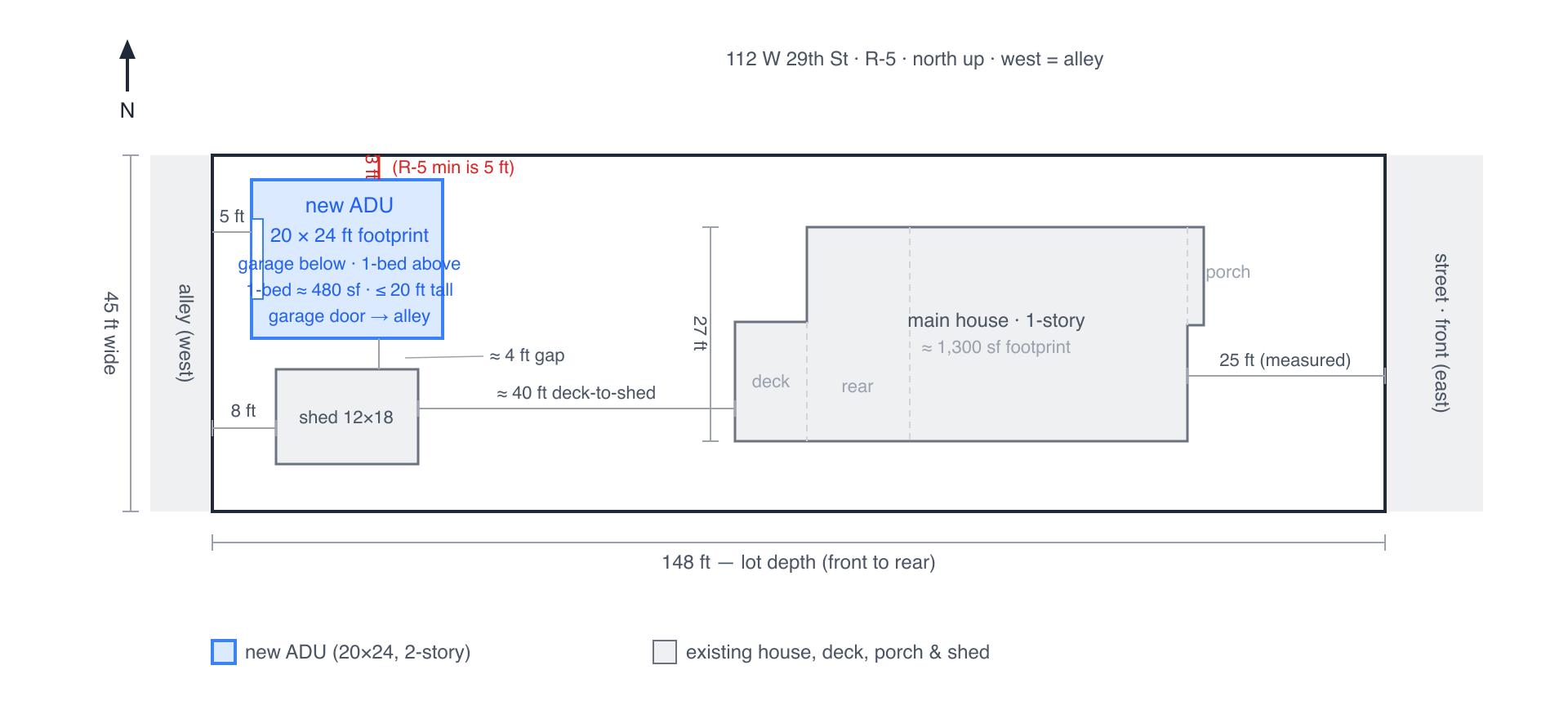

03 · Site

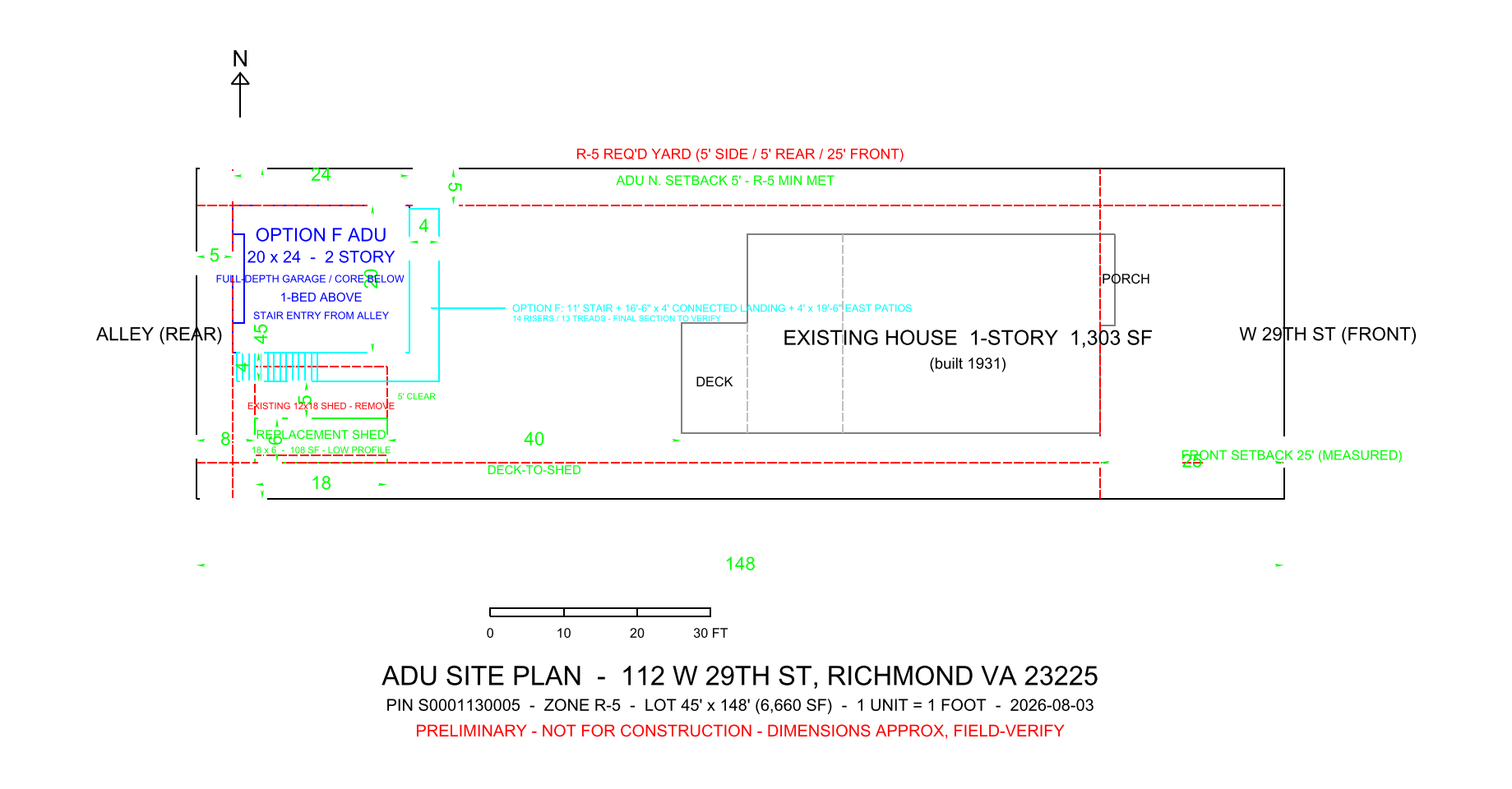

Site plan
20 × 24 ft enclosed footprint, 5-ft north setback, south stair and continuous landing, full 4-ft east patios, and an 18 × 6 replacement shed.
04 · Floor plan
SVG ↗
Open current floor plans
Full-depth garage, stacked wet core, upstairs laundry, continuous landing, and large east sliders.
New · August 2026
11 × 17 · 11 sheets · 1.6 MB

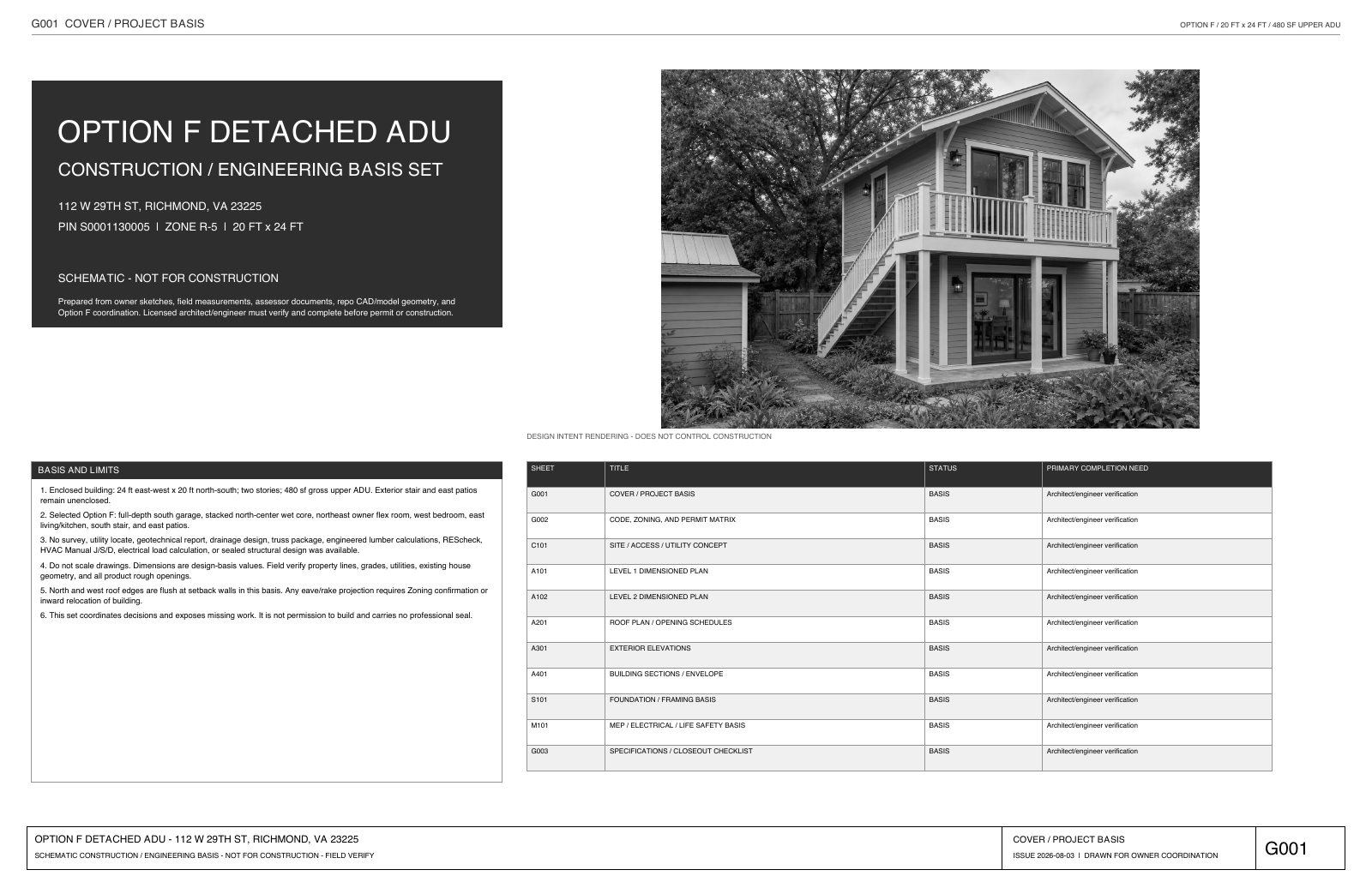

Architectural plan set
Dimensioned plans, site and utility concept, roof and opening schedules, four elevations, two sections, structural framing basis, MEP coordination, and permit closeout checklist.
Open complete PDF ↗Schematic construction + engineering basis
A serious handoff,
without pretending it is stamped.
The set coordinates known geometry, current Richmond design criteria, preliminary assemblies, structural load paths, MEP intent, and every unresolved permit item.
Open 11-sheet PDF ↗
Architecture
Dimensioned levels, roof, schedules, four elevations, sections, envelope, stair, and fire separation.
Structure
Foundation, floor and roof framing concepts, preliminary member basis, lateral system, and deferred engineering.
Building systems
Plumbing riser, electrical single line, HVAC and ventilation basis, alarms, energy, and inspection hold points.
What this is
A coordinated owner/architect/engineer handoff and scope-control document.
What remains
Survey, soil basis, written zoning rulings, sealed engineered products, REScheck, load calculations, and trade permits.
Construction status
Not for construction. Do not scale. Field verification and approved permit drawings govern.
Current concept
Stair-to-patio landing with full-depth east terraces.
Two-story, 20 × 24 ft enclosed structure at the 5-ft north setback. The south stair finishes on a continuous 4-ft-deep landing that turns openly into 4 × 19-ft-6-in east patios. A low-profile 18 × 6 maximum shed envelope leaves 5 ft clear before the stair.
Open printable site plan ↗
North setback Current draft uses the full 5-ft R-5 setback; no north-side variance is assumed.
Replacement shed Remove the current 12 × 18 structure; rebuild as a low-profile 18 × 6 shed on the southern 5-ft setback with 5 ft clear to the stair.
Elevated exterior circulation Architect and engineer to resolve posts, lateral bracing, footings, drainage, flashing, and a true 4-ft clear walking width after guards.
Survey and utilities Confirm property lines, grades, utility routes, stormwater path, and fire-department access before fixing the footprint.
Owner measurements and public records only. The coordinated plan set remains schematic and not for construction.
Interactive site model
The current plan,
in its yard and alley context.
True-scale whole-site massing with the existing house, replacement shed, current ADU, south stair, east patios, neighbors, setback lines, and toggleable Level 1 / Level 2 floor-plan overlays.
Open full-screen model ↗Preliminary massing only. Dimensions come from owner measurements, public records, and the current schematic basis; field verification and permit drawings govern.

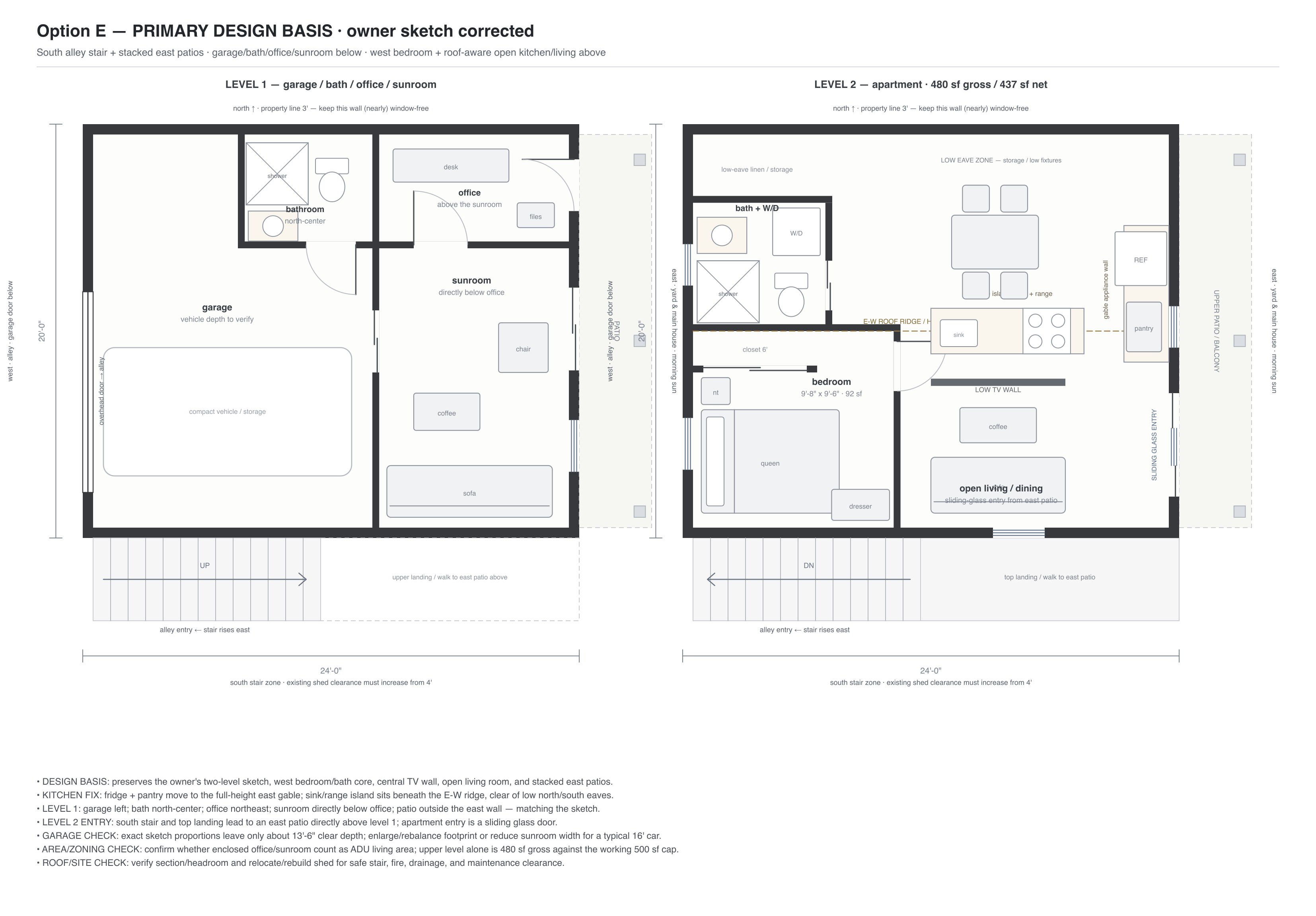

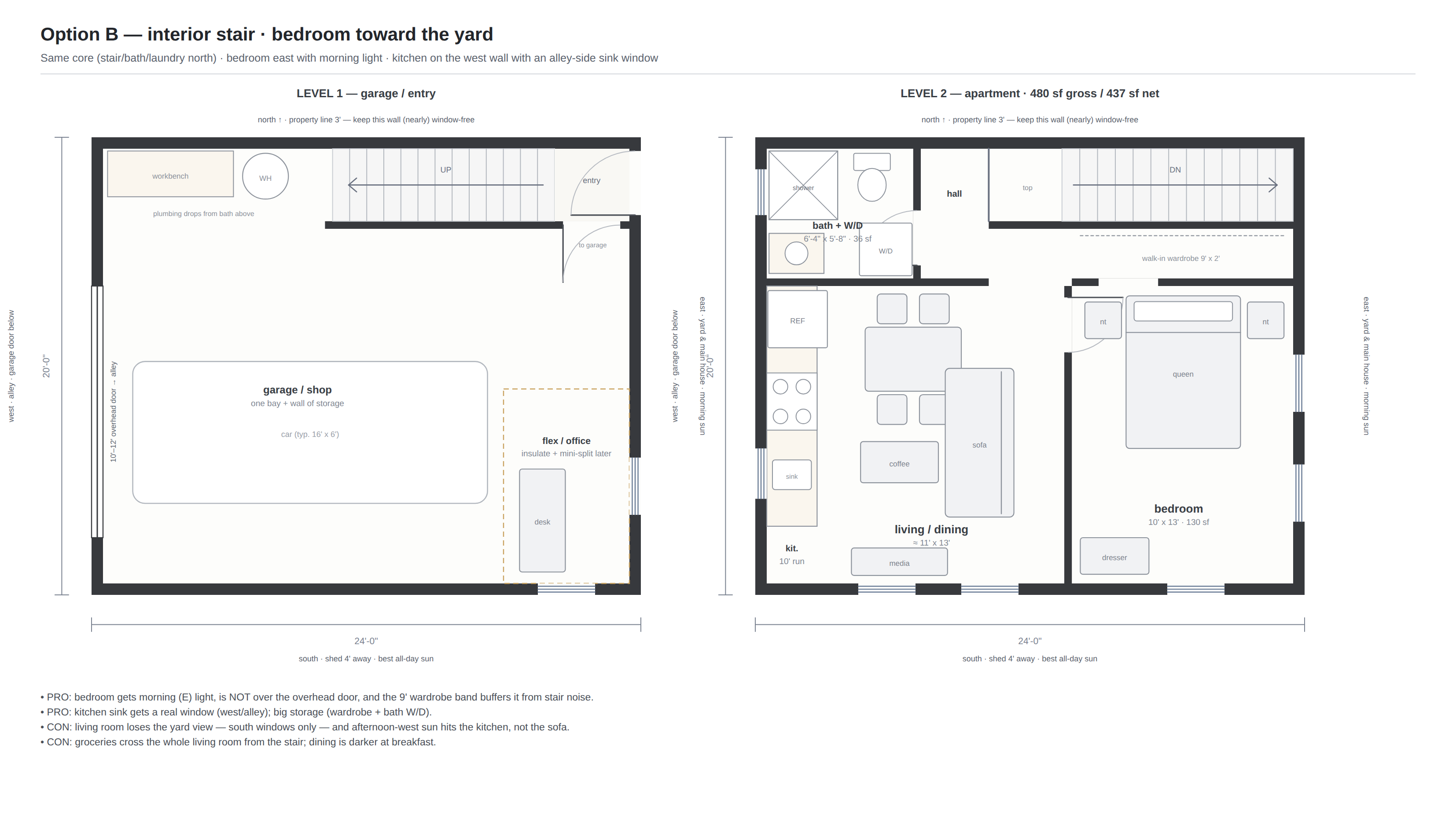

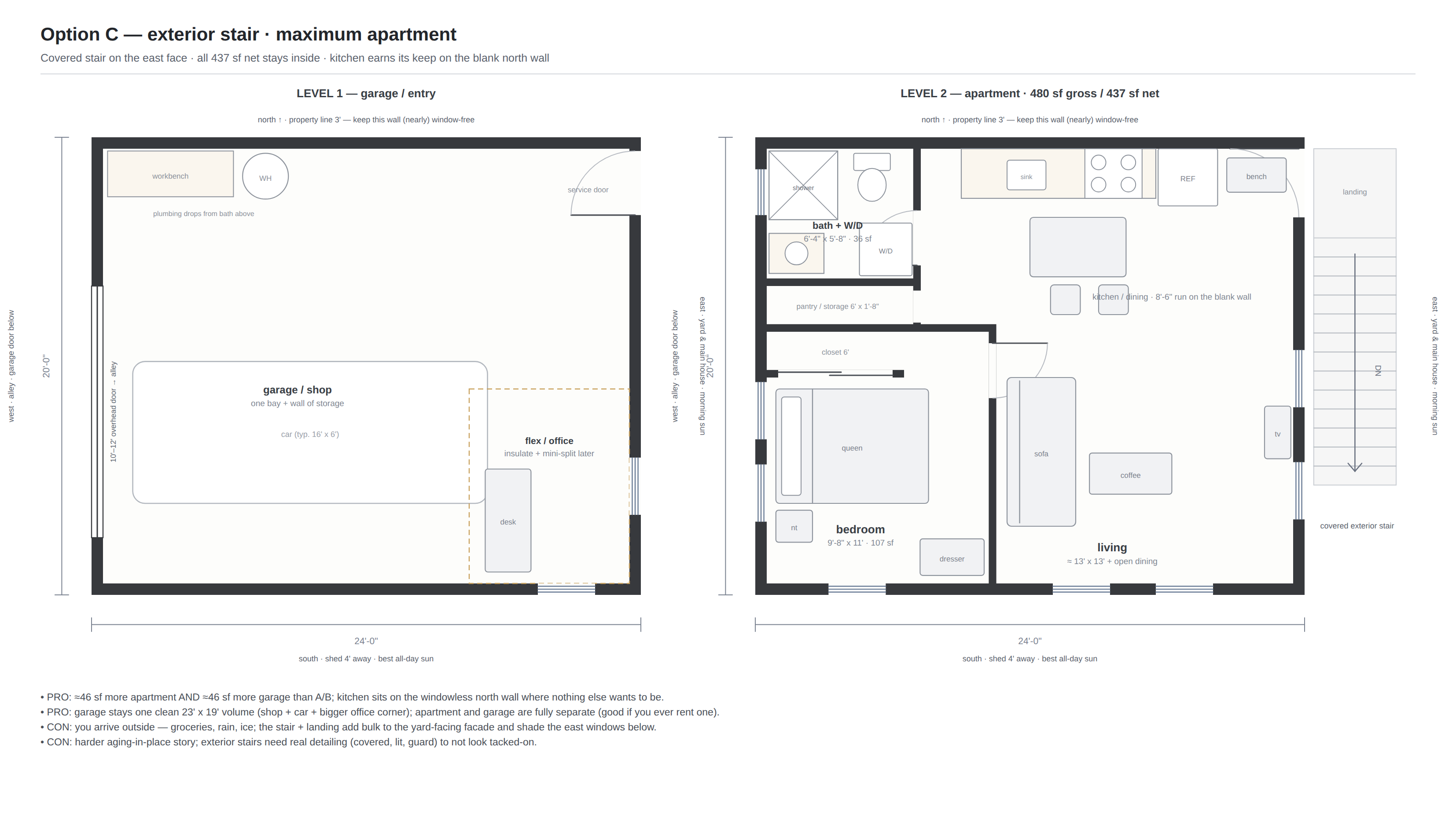

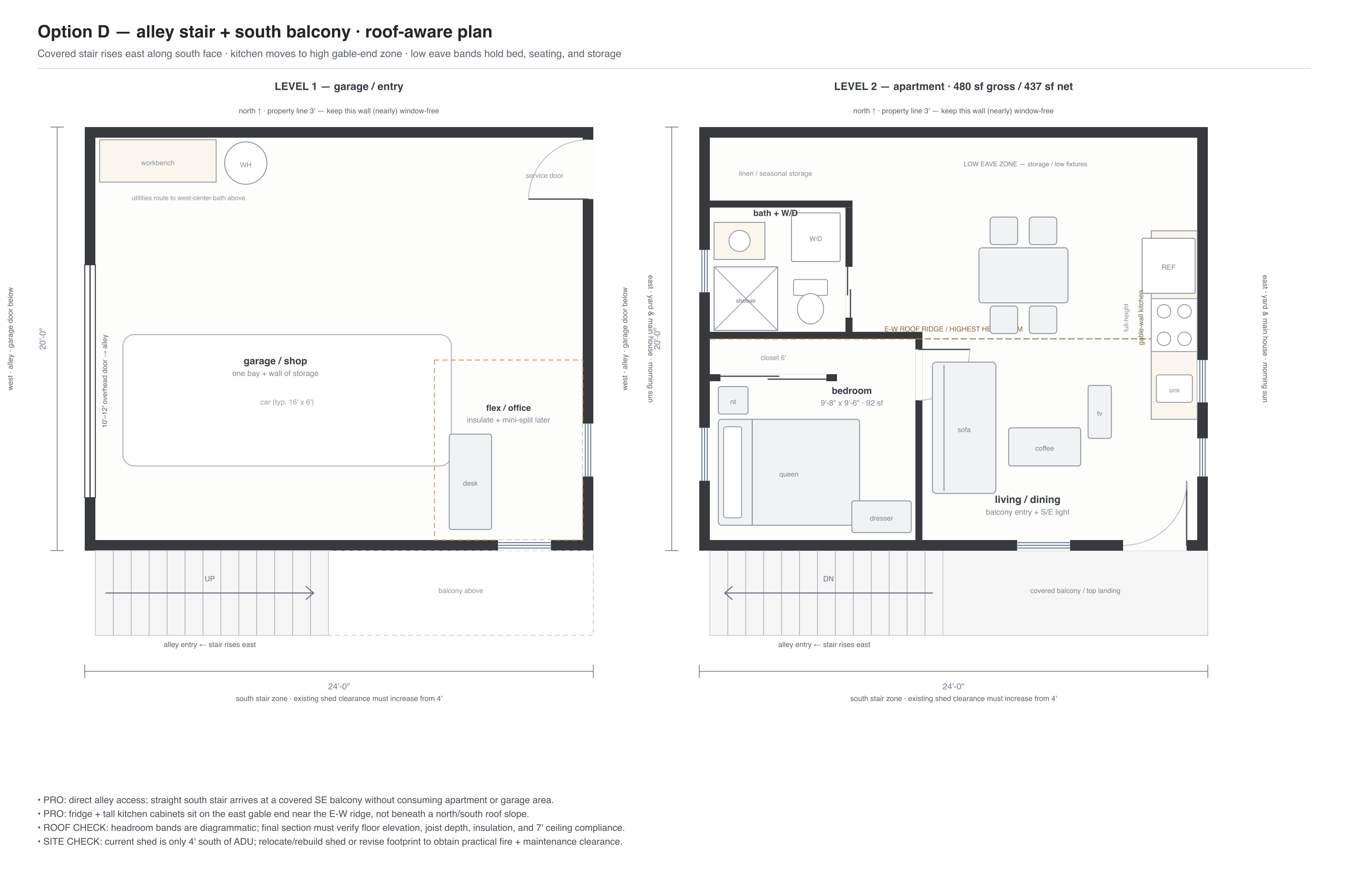

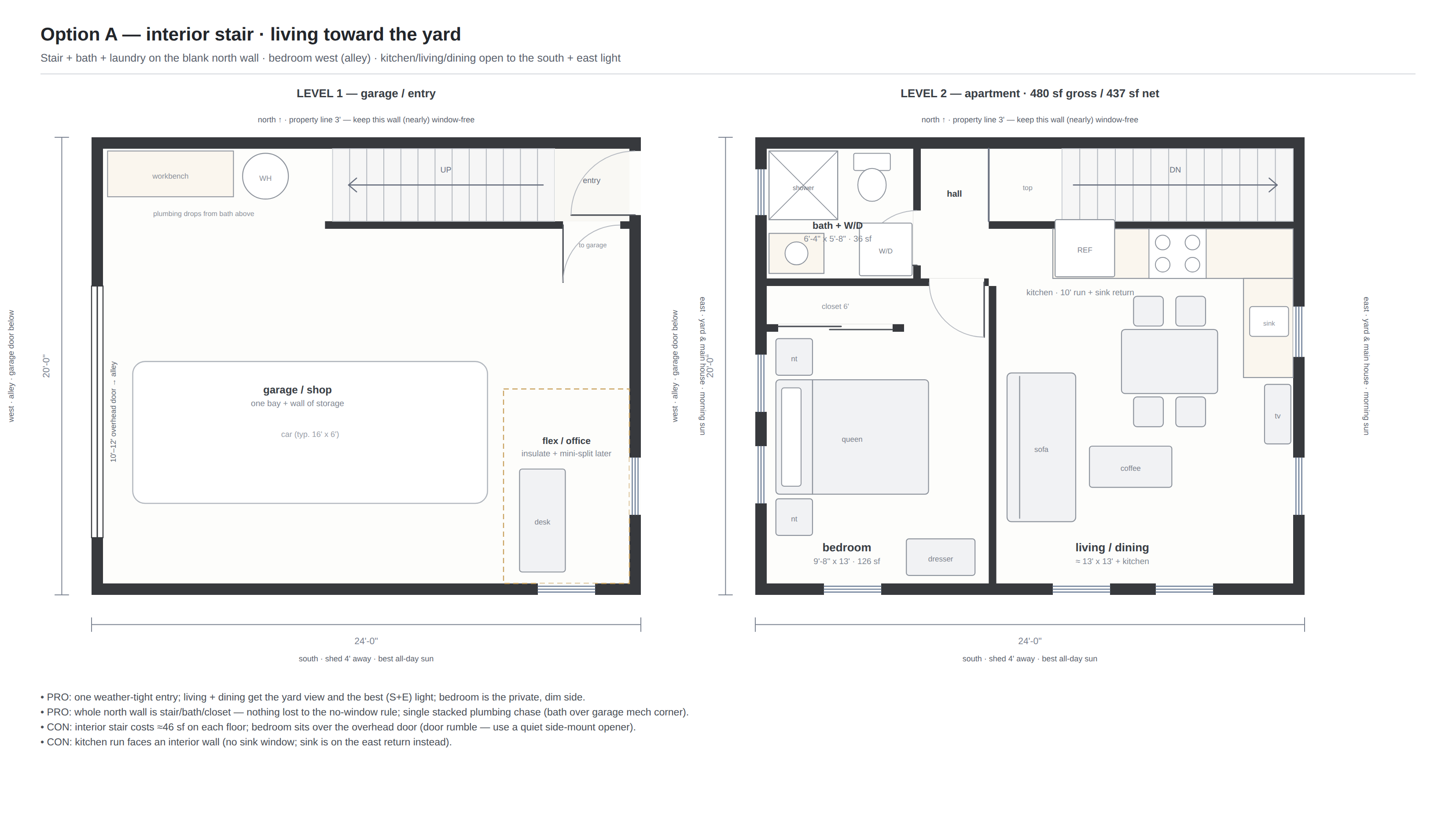

Current floor plans
The active drawing for the current plan.
The current plan develops the preferred exterior circulation and corrects the wet core: powder room below, bath above, and laundry in upper seasonal storage. It remains a concept for architect and engineer validation.
Editable vector drawing
SVG ↗
Open current floor plans
Full-depth garage, stacked wet core, upstairs laundry, continuous landing, and large east sliders.
Lower room classification Confirm how the owner office/garden room is counted under ADU and accessory-building rules; do not assume it is separate habitable floor area.
Fire separation Detail the garage-to-building separation, protected hall and door, sealed penetrations, alarms, and mechanical ventilation.
Roof section Prove usable headroom at bedroom, bath, kitchen, and dining edges while staying under the planned 20-ft ridge.
Stair and guards Verify rise/run, headroom, landings, handrails, guard openings, and the open southeast transition to the patio.
Openings Coordinate structure, water management, energy performance, privacy, egress, and safety glazing for the large sliders and windows.
Laundry access Confirm the pocket-door route through the bath is acceptable, or reserve enough storage depth for an alternate hall connection.
Plan-informed visualizations
Two levels,
seen from inside.
These renderings translate the current room relationships into perspective. They illustrate spatial intent and material character; dimensioned plans and future permit drawings govern.
Concept imagery only. Floor-plan geometry, roof section, rated assemblies, structure, MEP, clearances, and finishes require architect and engineer verification.
Design direction
Simple, warm, and compatible with the 1931 house.
Olive or muted green lap siding, a legible roof with setback-side edges held flush, divided-light windows, warm accents, and a carriage-style garage door. Craftsman influence without imitation.
Downloadable working set
Everything needed to start.
CAD and model files are true-scale working references. PDFs and public records provide markup context and traceability.
Modeling files
Architect software imports
True-scale CAD and 3D files for professional modeling tools.
Site plan — CADTrue scale · 1 unit = 1 ft
DXF ↓
Neutral CAD modelTrue-scale STEP · 79 named schematic objects
STEP ↓
Real-time modelColor GLB · Blender, web, and model viewers
GLB ↓
Whole-site massingHouse, shed, ADU, stair, patios · true-scale OBJ
OBJ ↓
Architect plans
Current plan drawings
PDF and vector plan sheets for review, markup, and coordination.
Construction + engineering basis11-sheet 11 × 17 schematic set · architecture, structure, MEP, code, and closeout
PDF ↗
Concept plan setFloor plans and site plan · combined working PDF
PDF ↗
Floor plansEditable vector drawing · both levels
SVG ↗
Site plan — printableNorth arrow, scale bar, title block
PDF ↗
Images
Current visual references
Renderings and interior views that show the intended look and spatial character.
Yard-side renderingCurrent exterior view with stacked east patios and sliders
PNG ↗
Alley-side renderingCurrent exterior view with garage, stair, entry, and upper landing
PNG ↗

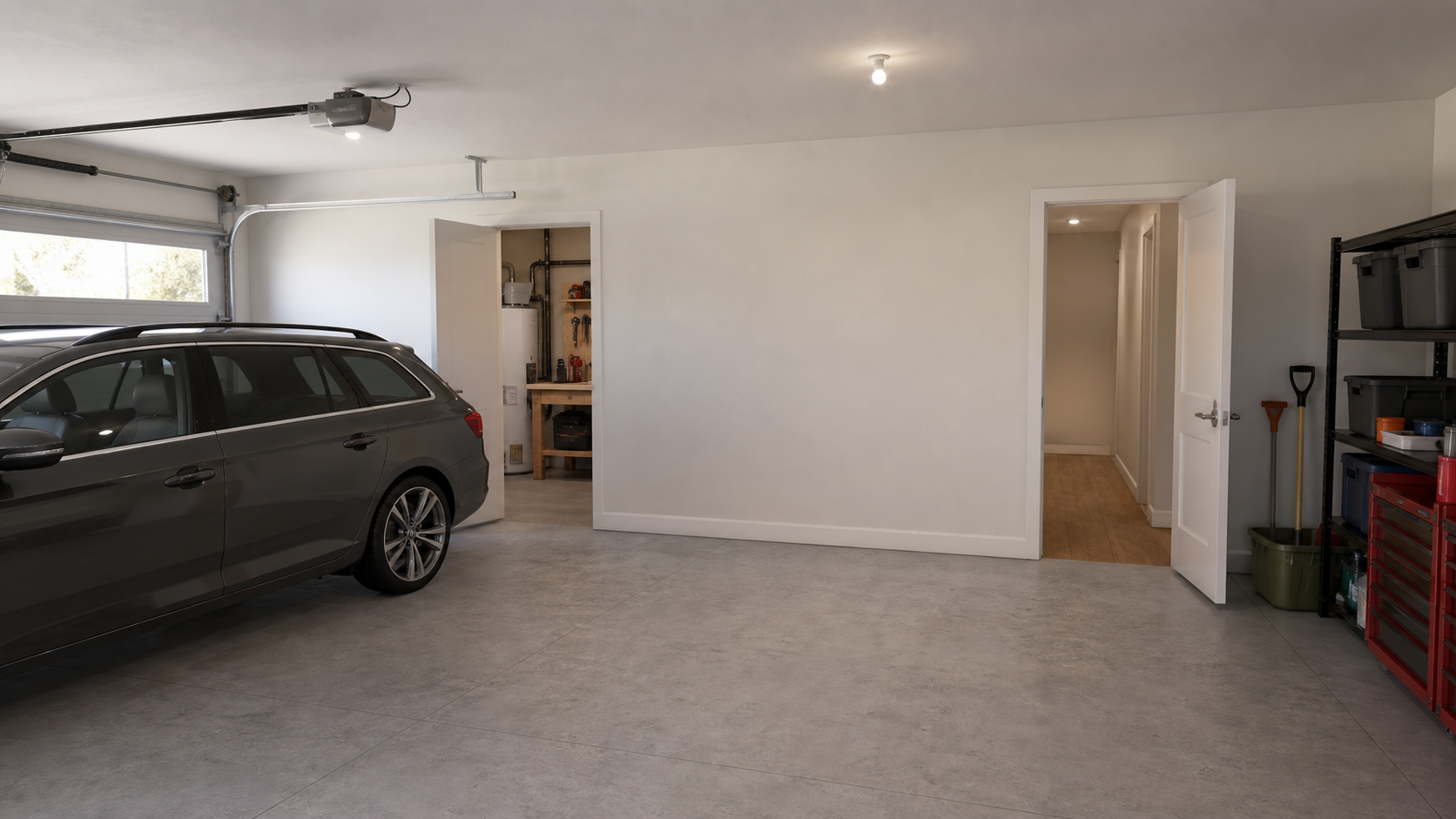

First-floor interiorGarage and protected service-wall concept rendering
PNG ↗
Second-floor interiorApartment concept rendering with corrected roof and bathroom circulation
PNG ↗
Source material
Sketches and records
Owner sketches, public records, and coordination references behind the plan.
Owner field sketchesOriginal site measurements
PDF ↗
Assessor building sketchCity record reference
PDF ↗
Property reportDataScout public record
PDF ↗
Render promptsSource hierarchy, geometry, and both camera briefs
MD ↗
Interactive site modelCurrent openings, stair, four-foot patios, floor-plan overlays, datums, and setback roof basis
HTML ↗
Coordination manifestCurrent authority, artifact versions, and historical boundaries
JSON ↗
